– 8 –

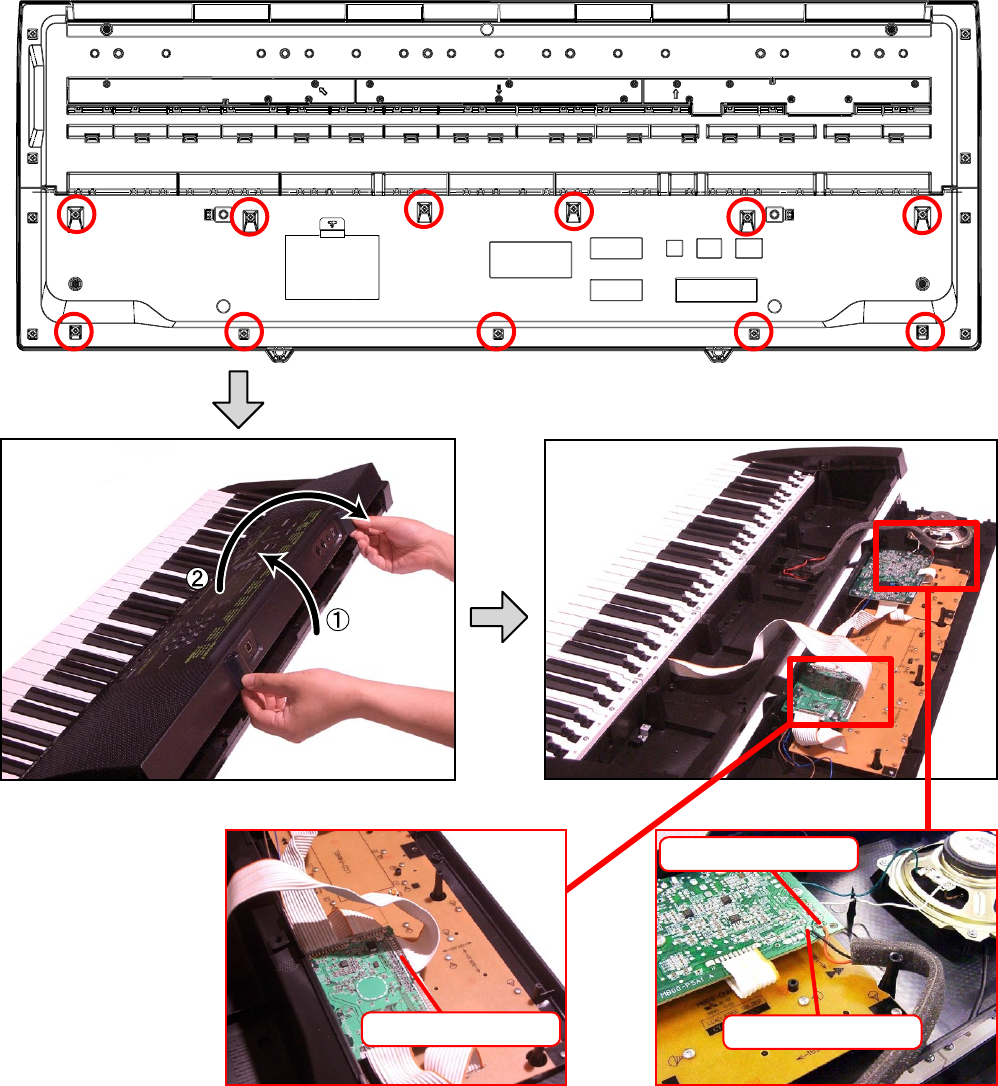

DISASSEMBLY

1. Remove the battery cover and then battery.

2. Remove 11 screws and then upper case.

3. Remove two lead wires by soldering.

4. Remove cable by soldering.

5. Make the keyboard unit and the main unit apart.

Read wire (Red)

Read wire (Black)

Cable (CN1)
